Standard I-beam dimensions are essential for construction projects, ensuring structural integrity and compatibility. These beams, with their distinctive I-shaped cross-section, provide exceptional strength and stability. Engineers rely on standardized charts, often available in PDF format, to select appropriate sizes for their designs, ensuring reliability and efficiency in building frameworks.
Overview of I-Beams and Their Importance in Construction
I-beams are critical structural elements in construction, offering exceptional strength and load-bearing capacity due to their I-shaped cross-section. Their standardized dimensions ensure compatibility and reliability in building designs. Widely used in steel frameworks, I-beams provide efficient load distribution, making them ideal for buildings, bridges, and industrial structures. Their versatility and cost-effectiveness have solidified their role as a fundamental component in modern construction, enabling safe and durable infrastructure development.
Standard I-Beam Sizes and Dimensions
Standard I-beam sizes and dimensions are specified in PDF charts, detailing nominal weights, depths, flange widths, and thicknesses for uniformity in construction projects.
Typical Dimensions and Weight Charts
Standard I-beam dimensions are detailed in weight charts, providing specific measurements for depth, flange width, web thickness, and weight per foot. These charts, often in PDF format, list common sizes like S12x50 or IPE 180, ensuring consistency in construction projects. Engineers use these charts to quickly reference beam specifications, such as material grades like S355JR or ASTM A36, and section properties for load calculations. This standardized approach streamlines design and procurement processes.
Nominal Weight, Depth, Flange Width, and Thickness
Nominal weight, depth, flange width, and thickness are critical dimensions for standard I-beams. For example, an I 100 X 68 beam has a depth of 100mm, flange width of 68mm, and thickness of 4.5mm, weighing 11.26kg/m. These measurements are standardized to ensure consistency across materials like S355JR or ASTM A36. Charts in PDF format provide detailed tables for quick reference, helping engineers specify beams accurately for structural integrity and load-bearing requirements in construction projects.
Material Grades and Specifications
Standard I-beams are available in various material grades, including S355JR, Q235B, and ST37, with ASTM A36 being a common specification. These grades ensure structural integrity and durability, with detailed properties outlined in PDF charts for easy reference and compliance with construction standards.
Common Material Grades for I-Beams
Standard I-beams are fabricated from various steel grades, with S355JR, Q235B, and ST37 being widely used due to their excellent strength and durability. ASTM A36 is another prevalent grade, known for its versatility in construction. These materials are selected based on their yield strength, tensile strength, and ability to withstand load stresses. PDF charts often detail the mechanical properties of these grades, ensuring engineers can choose the right material for their structural needs, whether for buildings, bridges, or industrial applications.
ASTM A36 and S355JR Material Properties
ASTM A36 steel is a widely used mild steel with a yield strength of 250 MPa and tensile strength up to 400-550 MPa. S355JR, a European standard steel, offers a minimum yield strength of 355 MPa and tensile strength ranging from 470-630 MPa. Both grades exhibit good weldability and durability, making them ideal for construction. PDF charts often detail these properties, helping engineers select the appropriate material based on load requirements and environmental conditions for optimal structural performance.
Applications of Standard I-Beams
Standard I-beams are versatile structural elements, widely used in building frameworks, bridges, and industrial constructions. Their strength and durability make them ideal for supporting heavy loads in various applications.
Use in Building Construction
Standard I-beams are fundamental in building construction, serving as primary structural elements. They are used for floors, roofs, and walls, offering excellent load-bearing capacity. Their uniform dimensions, as detailed in PDF charts, ensure compatibility and ease of assembly. Architects and engineers rely on these beams to create stable and durable frameworks, essential for modern buildings. Their versatility and strength make them a cornerstone in both residential and commercial construction projects.
Role in Bridge and Industrial Structures

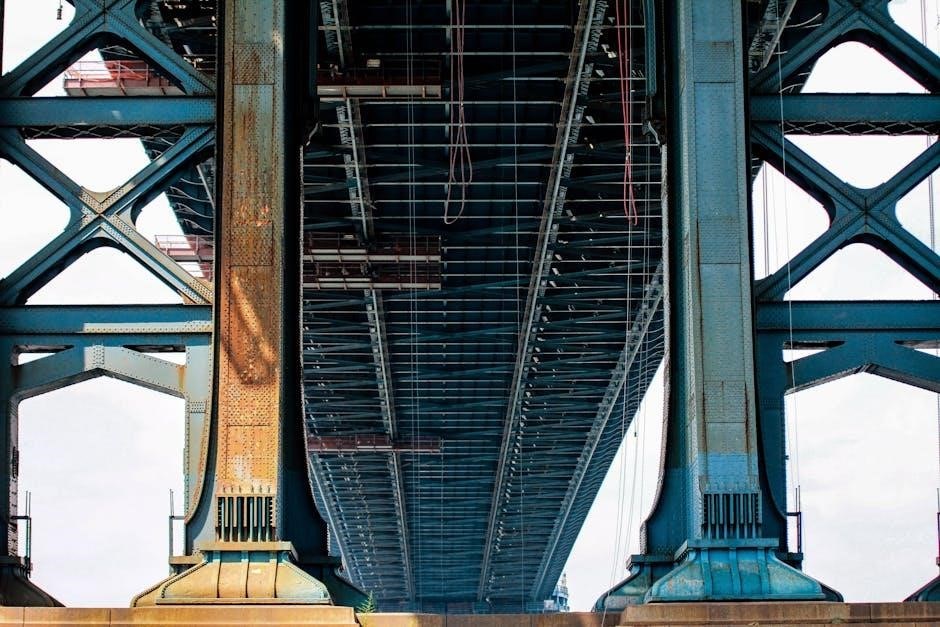

Standard I-beams play a critical role in bridge and industrial construction due to their exceptional strength and durability. Their consistent dimensions, as outlined in PDF charts, ensure reliability in large-scale projects. I-beams are used for bridge spans, supporting heavy loads and withstanding environmental stresses. In industrial settings, they are employed in frameworks for warehouses, factories, and machinery supports. Their ability to bear heavy loads while maintaining structural integrity makes them indispensable in these applications, ensuring safety and long-term performance.
Technical Specifications and Section Properties
Standard I-beam dimensions include section modules, depth, web thickness, and flange dimensions, ensuring precise engineering and construction applications. These properties are crucial for load calculations and design integrity.
Section Modules and Depth of Section
Section modules and depth are critical in determining the structural capacity of I-beams. The depth of the section, measured from the top to the bottom flange, directly influences the beam’s strength and stability. Standard dimensions provide precise measurements, ensuring compatibility and safety in construction. For example, an I-beam with a depth of 12 inches (304.8 mm) and a section module of 12.50 cubic inches (204.2 cm³) offers reliable load-bearing capabilities. These properties are essential for accurate engineering and design calculations.
Web Thickness and Flange Dimensions
Web thickness and flange dimensions are vital for ensuring structural integrity in I-beams. The web thickness, ranging from 0.260 to 0.747 inches, provides resistance to shear forces, while flange dimensions, typically between 2.330 and 7.875 inches in width and 0.170 to 0.625 inches in thickness, enhance moment capacity. These standardized measurements ensure optimal load distribution and compliance with engineering requirements, making them indispensable for precise construction planning and material specification. Detailed charts in PDF formats offer comprehensive data for accurate design and implementation.
Load Capacity and Structural Integrity
Load capacity and structural integrity of I-beams depend on their dimensions, material grade, and cross-sectional area. Proper sizing ensures beams can withstand designated loads without deformation or failure.
Determining Load-Bearing Capacity
Determining the load-bearing capacity of I-beams involves analyzing their cross-sectional dimensions, material properties, and span conditions. Engineers use section modulus and moment of inertia from standard charts to calculate maximum allowable loads. Depth, flange width, and thickness are critical factors, as they influence bending resistance. Material grades like ASTM A36 or S355JR provide tensile strength values, ensuring beams can safely support designated weights without deformation. Accurate calculations are essential for structural safety and efficiency in construction projects.
Impact of Dimensions on Structural Strength
The dimensions of an I-beam significantly influence its structural strength and performance. Depth, flange width, and web thickness are critical factors, as they affect the beam’s resistance to bending and shear forces. A deeper beam with thicker flanges offers greater strength and stiffness, while a narrower beam may compromise load capacity. Standard charts provide precise measurements, ensuring engineers select beams that meet specific project demands, optimizing both safety and material efficiency in construction applications.
Availability and Sourcing
Standard I-beam dimensions are widely available from manufacturers and suppliers globally. PDF charts provide easy access to size specifications, aiding engineers and builders in selecting appropriate beams efficiently.
Standard I-Beam Sizes in PDF Format
Standard I-beam dimensions are readily available in PDF format, providing engineers and builders with quick access to size charts. These documents detail nominal weights, depths, flange widths, and section properties for various steel grades. Suppliers like Coyote Steel & Co. offer comprehensive PDF handbooks, ensuring accurate sizing for construction projects. PDF charts also include material specifications, such as ASTM A36 and S355JR, making them indispensable for structural planning and design efficiency.
Suppliers and Manufacturers of I-Beams
Prominent suppliers like Coyote Steel & Co., Upstate Steel, and Sugar Steel Corporation provide high-quality I-beams in standard dimensions. These manufacturers offer a wide range of sizes, from S3 to S24, ensuring compatibility with various construction needs. Their products adhere to material standards such as ASTM A36 and S355JR, guaranteeing durability and structural integrity. With extensive catalogs and reliable service, these suppliers are trusted partners for building and industrial projects worldwide, delivering precision-engineered I-beams to meet diverse engineering requirements.
Standard I-beam dimensions are crucial for construction, ensuring structural integrity and compatibility. Their versatility and strength make them indispensable in modern building projects.
Standard I-beam dimensions are critical for construction and design consistency. They include nominal weight, depth, flange width, and thickness, ensuring structural integrity. Common materials like ASTM A36 and S355JR offer reliable strength. Applications range from building frames to bridges, highlighting their versatility. Detailed charts, often in PDF format, provide essential specifications for engineers. These resources are widely available from manufacturers and structural guides, aiding in precise planning and execution of projects.
Importance of Standard Dimensions in Construction
Standard I-beam dimensions ensure consistency, safety, and cost-efficiency in construction. They provide uniform strength and compatibility, reducing design complexities. Adhering to standardized sizes minimizes errors and enhances structural reliability. Builders and engineers rely on these specifications to meet safety codes and optimize material usage. Proper dimensions also facilitate seamless integration with other components, ensuring durability and stability in buildings and bridges. Accessing these standards via PDF guides simplifies planning and execution, making them indispensable in modern engineering practices.
